iOS TabView and Pager

SwiftUI TabView, Tab, TabSection, tab slots, bottom accessory, and Pager under One.iOS

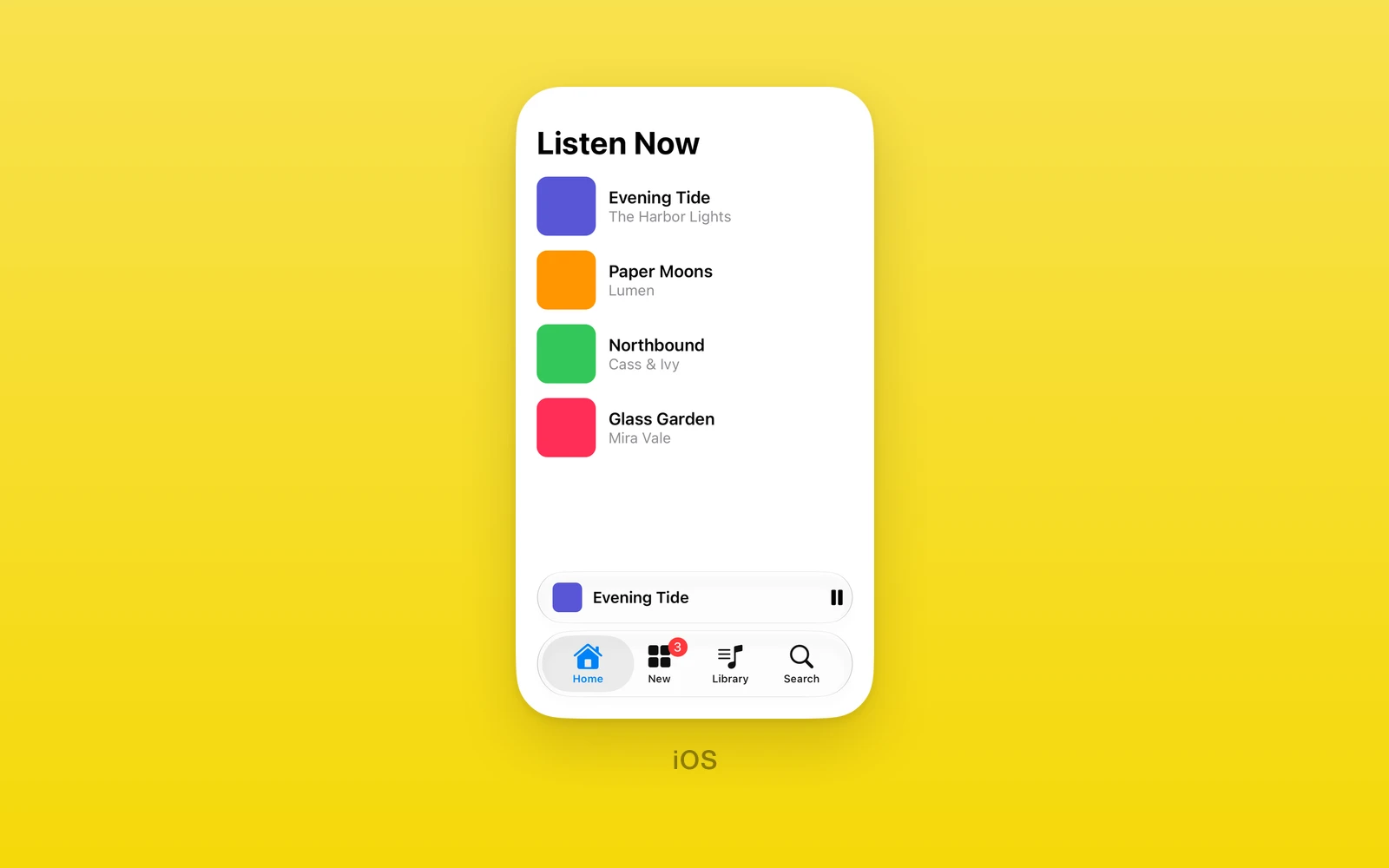

One.iOS TabView with a glass tab bar, a badge, a search tab, and a now playing accessory

One.iOS tab navigation and swipe paging are SwiftUI’s own. TabView is a controlled tab view of Tab pages, with TabSection groups for the iPad sidebar, TabViewSlot and TabViewBottomAccessory content around the bar, and an optional Toolbar. Pager is a tab view without the bar: people swipe between Page children.

Reach for TabView for top-level navigation with a bar, and Pager for swipe flows with no chrome. selection must name a mounted page tab, or both throw. Every view here throws on web and Android.

Usage

import { useState } from 'react'
import { Text } from 'react-native'
import { One } from 'one'

function FeedScreen() {
  return <Text>Your feed.</Text>
}

function Library({ openComposer }: { openComposer: () => void }) {
  const [tab, setTab] = useState('feed')

  return (
    <One.iOS.TabView selection={tab} onSelectionChange={setTab}>
      <One.iOS.Tab value="feed" titleKey="Feed" systemImage="house">
        <FeedScreen />
      </One.iOS.Tab>
      <One.iOS.Tab value="new" titleKey="New" systemImage="plus" onPress={openComposer} />
    </One.iOS.TabView>
  )
}

The first tab shows a page; the second is an action tab that runs its press and never becomes the selection. onReselect reports a tap on the selected tab.

How it works

Selection is a controlled tab value with an event count and a revision. A native tab change bumps the count and reports the new id; JavaScript calls the change handler and acknowledges the event. Raising revision with a new selection moves the tab view from the outside. Action tabs and section header buttons run their callbacks directly instead of changing the selection.

On iOS 18 and later each page renders in the modern Tab API inside its own navigation container, which stays transparent so the system bar shows the content behind it; your page owns its background. Older iOS falls back to a legacy TabView. Sections, tab modifiers, styles, and customization need iOS 18. Tab customization edits persist as JSON: pass onCustomizationChange to bind it, persist the reported string, and pass it back as customization.

TabView

TabView is a SwiftUI tab view. Only Tab, TabSection, TabViewSlot, TabViewBottomAccessory, and one Toolbar may be its direct children.

import { useState } from 'react'
import { Text } from 'react-native'
import { One } from 'one'

function Home({ openComposer }: { openComposer: () => void }) {
  const [tab, setTab] = useState('feed')

  return (
    <One.iOS.TabView
      selection={tab}
      onSelectionChange={setTab}
      onReselect={(value) => console.log('reselected', value)}
    >
      <One.iOS.Tab value="feed" titleKey="Feed" systemImage="house">
        <Text>Your feed.</Text>
      </One.iOS.Tab>
      <One.iOS.Tab value="new" titleKey="New" systemImage="plus" onPress={openComposer} />
    </One.iOS.TabView>
  )
}

Props	Type	Description
`selection (required)`stringThe value of the selected page tab.	string	The value of the selected page tab.
`onSelectionChange (required)`(value: string) => voidA native tab change, with the new value.	(value: string) => void	A native tab change, with the new value.
`onReselect`(value: string) => voidA tap on the selected tab outside a TabSection, with its value.	(value: string) => void	A tap on the selected tab outside a TabSection, with its value.
`revision`number = 0Increase with a new selection to reset it from outside.	number = 0	Increase with a new selection to reset it from outside.
`tabViewStyle`TabViewStyle = "automatic"automatic, sidebarAdaptable, tabBarOnly, or page.	TabViewStyle = "automatic"	automatic, sidebarAdaptable, tabBarOnly, or page.
`tabBarVisibility`Visibility = "automatic"The tab bar on every page: automatic, visible, or hidden.	Visibility = "automatic"	The tab bar on every page: automatic, visible, or hidden.
`customization`string = ""Saved tab customization JSON, from onCustomizationChange.	string = ""	Saved tab customization JSON, from onCustomizationChange.
`onCustomizationChange`(customization: string) => voidPeople reordered or hid tabs. Persist the JSON.	(customization: string) => void	People reordered or hid tabs. Persist the JSON.
`swiftStyle`OneNativeStyleSwiftUI modifiers on the tab view.	OneNativeStyle	SwiftUI modifiers on the tab view.
`children (required)`ReactNodeTab, TabSection, TabViewSlot, and TabViewBottomAccessory elements.	ReactNode	Tab, TabSection, TabViewSlot, and TabViewBottomAccessory elements.

Tab

Tab is one tab. It takes either children, as a page, or onPress, as an action tab, never both. Values must be unique and nonempty, and systemImage and image are mutually exclusive.

import { Text } from 'react-native'
import { One } from 'one'

function SearchTab() {
  return (
    <One.iOS.Tab value="search" titleKey="Search" systemImage="star" role="search" badge={3}>
      <Text>Search results.</Text>
    </One.iOS.Tab>
  )
}

Props	Type	Description
`value (required)`stringIdentifies the tab in selection.	string	Identifies the tab in selection.
`titleKey (required)`stringThe tab label.	string	The tab label.
`systemImage`SFSymbolName \| ""An SF Symbol. Not with image.	SFSymbolName \| ""	An SF Symbol. Not with image.
`image`stringAn asset catalog image. Not with systemImage.	string	An asset catalog image. Not with systemImage.
`labelStyle`SDKLabelStyleiconOnly keeps the title for VoiceOver only.	SDKLabelStyle	iconOnly keeps the title for VoiceOver only.
`navigationStack`booleanSet false to skip the NavigationStack wrapper, so a nested NavigationSplitView renders.	boolean	Set false to skip the NavigationStack wrapper, so a nested NavigationSplitView renders.
`badge`string \| numberA badge on the tab item.	string \| number	A badge on the tab item.
`role`TabRolesearch or prominent, the SwiftUI tab roles.	TabRole	search or prominent, the SwiftUI tab roles.
`tabPlacement`TabPlacementautomatic, pinned, or sidebarOnly.	TabPlacement	automatic, pinned, or sidebarOnly.
`testID`stringIdentifies the page in tests.	string	Identifies the page in tests.
`onPress`() => voidMakes an action tab, which runs this and keeps the selection.	() => void	Makes an action tab, which runs this and keeps the selection.
`swiftStyle`OneNativeStyleSwiftUI modifiers on the page content.	OneNativeStyle	SwiftUI modifiers on the page content.
`children`ReactNodeThe page.	ReactNode	The page.

Tab and TabSection share these SwiftUI tab modifiers:

Modifiers	Type	Description
`disabled`booleanDims the tab. iOS 18.4 or later.	boolean	Dims the tab. iOS 18.4 or later.
`hidden`booleanRemoves the tab from the bar and sidebar.	boolean	Removes the tab from the bar and sidebar.
`customizationID`stringLets people reorder or hide the tab.	string	Lets people reorder or hide the tab.
`customizationBehavior`{ behavior: TabCustomizationBehavior for?: readonly AdaptableTabBarPlacement[] }automatic, reorderable, or disabled, for the listed placements.	{ behavior: TabCustomizationBehavior for?: readonly AdaptableTabBarPlacement[] }	automatic, reorderable, or disabled, for the listed placements.
`defaultVisibility`{ visibility: Visibility for?: readonly AdaptableTabBarPlacement[] }Shown or hidden until people customize, for the listed placements.	{ visibility: Visibility for?: readonly AdaptableTabBarPlacement[] }	Shown or hidden until people customize, for the listed placements.
`springLoadingBehavior`SpringLoadingBehaviorWhether a drag hovering the tab opens it.	SpringLoadingBehavior	Whether a drag hovering the tab opens it.
`accessibilityLabel`stringRead by VoiceOver in place of the title.	string	Read by VoiceOver in place of the title.
`accessibilityHint`stringWhat selecting the tab does.	string	What selecting the tab does.
`accessibilityValue`stringThe tab's current value.	string	The tab's current value.
`accessibilityIdentifier`stringIdentifies the tab item in UI tests.	string	Identifies the tab item in UI tests.
`help`stringHelp text for the tab. iOS 27 or later.	string	Help text for the tab. iOS 27 or later.

TabSection

TabSection groups tabs under a heading in the sidebar. Its children are Tab elements, at least one.

import { useState } from 'react'
import { Text } from 'react-native'
import { One } from 'one'

function LibraryTabView() {
  const [tab, setTab] = useState('songs')

  return (
    <One.iOS.TabView tabViewStyle="sidebarAdaptable" selection={tab} onSelectionChange={setTab}>
      <One.iOS.TabSection id="music" title="Music">
        <One.iOS.Tab value="songs" titleKey="Songs" systemImage="star">
          <Text>Your songs.</Text>
        </One.iOS.Tab>
      </One.iOS.TabSection>
    </One.iOS.TabView>
  )
}

Props	Type	Description
`id (required)`stringIdentifies the section.	string	Identifies the section.
`title (required)`stringThe section heading.	string	The section heading.
`defaultSectionExpansion`TabSectionExpansionautomatic, expanded, or collapsed at first.	TabSectionExpansion	automatic, expanded, or collapsed at first.
`sectionActions`readonly { id: string title: string systemImage?: SFSymbolName \| "" onPress: () => void }[]Buttons in the section header.	readonly { id: string title: string systemImage?: SFSymbolName \| "" onPress: () => void }[]	Buttons in the section header.
`children (required)`ReactNodeThe tabs.	ReactNode	The tabs.

TabViewSlot

TabViewSlot fills a named tab view slot with React Native content. Place it directly inside TabView, alongside the Tab children. Each name may appear once, the height must be above zero, and the slot keeps its declared height and React Native event handlers as selection changes.

import { useState } from 'react'
import { Pressable, Text } from 'react-native'
import { One } from 'one'

function PlayerTabView({ openPlayer }: { openPlayer: () => void }) {
  const [tab, setTab] = useState('home')

  return (
    <One.iOS.TabView selection={tab} onSelectionChange={setTab}>
      <One.iOS.Tab value="home" titleKey="Home" systemImage="house">
        <Text>Home.</Text>
      </One.iOS.Tab>
      <One.iOS.Tab value="other" titleKey="Other" systemImage="star">
        <Text>Other.</Text>
      </One.iOS.Tab>
      <One.iOS.TabViewSlot name="tabViewBottomAccessory" height={50}>
        <Pressable onPress={openPlayer}>
          <Text>Open player</Text>
        </Pressable>
      </One.iOS.TabViewSlot>
    </One.iOS.TabView>
  )
}

The bottom accessory remains above the system tab bar as selection changes. The sidebar slots are tabViewSidebarHeader, tabViewSidebarFooter, and tabViewSidebarBottomBar: they display only when the tab view presents a sidebar and are absent from the compact iPhone tab bar. On iPad, use tabViewStyle="sidebarAdaptable" to present the native sidebar; the header and footer sit above the sidebar bottom bar, which spans the bottom of the sidebar.

import { useState } from 'react'
import { Pressable, Text } from 'react-native'
import { One } from 'one'

function SidebarTabView({ openSearch, openSettings, openProfile }: { openSearch: () => void; openSettings: () => void; openProfile: () => void }) {
  const [tab, setTab] = useState('home')

  return (
    <One.iOS.TabView tabViewStyle="sidebarAdaptable" selection={tab} onSelectionChange={setTab}>
      <One.iOS.Tab value="home" titleKey="Home" systemImage="house">
        <Text>Home.</Text>
      </One.iOS.Tab>
      <One.iOS.Tab value="other" titleKey="Other" systemImage="star">
        <Text>Other.</Text>
      </One.iOS.Tab>
      <One.iOS.TabViewSlot name="tabViewSidebarHeader" height={44}>
        <Pressable onPress={openSearch}>
          <Text>Search</Text>
        </Pressable>
      </One.iOS.TabViewSlot>
      <One.iOS.TabViewSlot name="tabViewSidebarFooter" height={48}>
        <Pressable onPress={openSettings}>
          <Text>Settings</Text>
        </Pressable>
      </One.iOS.TabViewSlot>
      <One.iOS.TabViewSlot name="tabViewSidebarBottomBar" height={52}>
        <Pressable onPress={openProfile}>
          <Text>Profile</Text>
        </Pressable>
      </One.iOS.TabViewSlot>
    </One.iOS.TabView>
  )
}

Props	Type	Description
`name (required)`TabViewSlotNametabViewBottomAccessory (iOS 26), or a sidebar slot (iOS 18).	TabViewSlotName	tabViewBottomAccessory (iOS 26), or a sidebar slot (iOS 18).
`height (required)`numberThe slot height in points. Must be above zero.	number	The slot height in points. Must be above zero.
`children (required)`ReactNodeThe slot content.	ReactNode	The slot content.

TabViewBottomAccessory

TabViewBottomAccessory sits above the tab bar, like a music player’s now playing bar. It needs iOS 26, and TabView takes one. It needs children, inline, or expanded; a missing layout falls back to the others.

import { useState } from 'react'
import { Text } from 'react-native'
import { One } from 'one'

function PlayerBar() {
  const [tab, setTab] = useState('home')

  return (
    <One.iOS.TabView selection={tab} onSelectionChange={setTab}>
      <One.iOS.Tab value="home" titleKey="Home" systemImage="house">
        <Text>Home.</Text>
      </One.iOS.Tab>
      <One.iOS.TabViewBottomAccessory
        inline={<Text>Evening Tide</Text>}
        expanded={<Text>Evening Tide, The Harbor Lights</Text>}
      />
    </One.iOS.TabView>
  )
}

Props	Type	Description
`isEnabled`booleanHides the accessory without remounting it. iOS 26.1 or later.	boolean	Hides the accessory without remounting it. iOS 26.1 or later.
`children`ReactNodeContent for both layouts.	ReactNode	Content for both layouts.
`inline`ReactNodeContent while the bar is minimized beside it.	ReactNode	Content while the bar is minimized beside it.
`expanded`ReactNodeContent above the full bar.	ReactNode	Content above the full bar.

Pager is a tab view without the bar: people swipe between pages. Children must be Page elements with unique nonempty ids, and selection must name a mounted page. For a pager on both platforms, use One.UI.Pager.

Use indexDisplayMode="always" to show page indicators, "never" to hide them, or "automatic" to let SwiftUI choose. The default is "automatic".

import { useState } from 'react'
import { Text } from 'react-native'
import { One } from 'one'

function Onboarding() {
  const [page, setPage] = useState('one')

  return (
    <One.iOS.Pager selection={page} onSelectionChange={setPage}>
      <One.iOS.Page id="one">
        <Text>Welcome.</Text>
      </One.iOS.Page>
      <One.iOS.Page id="two">
        <Text>How it works.</Text>
      </One.iOS.Page>
    </One.iOS.Pager>
  )
}

Pager	Type	Description
`selection (required)`stringThe id of the shown page.	string	The id of the shown page.
`indexDisplayMode`SDKPageTabViewStyleIndexDisplayModeValue = 'automatic'When SwiftUI shows page indicators: automatic, always, or never.	SDKPageTabViewStyleIndexDisplayModeValue = 'automatic'	When SwiftUI shows page indicators: automatic, always, or never.
`onSelectionChange (required)`(id: string) => voidA swipe to another page.	(id: string) => void	A swipe to another page.
`revision`number = 0Increase with a new selection to reset it from outside.	number = 0	Increase with a new selection to reset it from outside.
`children (required)`ReactNodePage elements.	ReactNode	Page elements.

Page	Type	Description
`id (required)`stringIdentifies the page in selection.	string	Identifies the page in selection.
`testID`stringIdentifies the page in tests.	string	Identifies the page in tests.
`children (required)`ReactNodeThe page content.	ReactNode	The page content.

Platform differences

	iOS	Android	Web
Renders	SwiftUI tabs	Throws	Throws
Sidebar	iPad sidebar	None	None
Paging	Swipe pages	None	None

In the Peach simulator TabView draws the floating tab bar and honours swiftStyle={{ tabBarMinimizeBehavior }}: the bar collapses as the page scrolls down, and a tap on it expands it again. The page tab view style and the iPad sidebar are not drawn there, so Peach throws for them.

Limits and gotchas

tabBarMinimizeBehavior follows the page’s first scroll view. One names a page’s first React Native ScrollView (or list) as the tab bar’s content scroll view, so the bar minimizes as it scrolls with no extra wiring.
Selection must name a mounted page. Both TabView and Pager throw otherwise, and an action tab never becomes the selection.
TabView takes markers only. Anything but Tab, TabSection, TabViewSlot, TabViewBottomAccessory, and one Toolbar as direct children throws; markers rendered anywhere else throw too.
A tab is a page or an action. Exactly one of children and onPress, and exactly one of systemImage and image.
New chrome needs new iOS. Sections, modifiers, styles, and customization need iOS 18; the bottom accessory needs iOS 26, its isEnabled iOS 26.1, and tab help text iOS 27.
